Testing-Plantuml

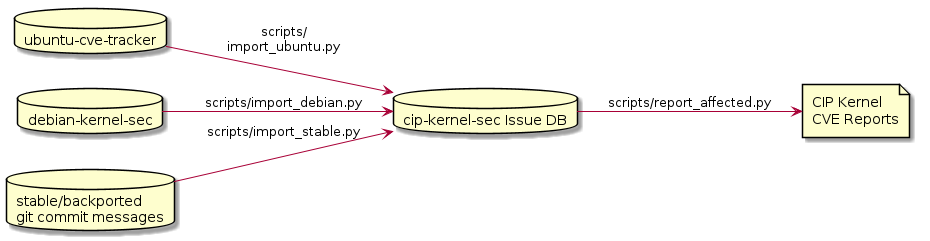

1.Diagram_A

$@startuml left to right direction database "ubuntu-cve-tracker" as D1 database "debian-kernel-sec" as D2 database "stable/backported\n git commit messages" as D3 database "cip-kernel-sec Issue DB" as D4 file "CIP Kernel\nCVE Reports" as f1 D1-->D4 : scripts/\nimport_ubuntu.py D2-->D4 : scripts/import_debian.py D3-->D4 : scripts/import_stable.py D4-->f1 : scripts/report_affected.py @enduml$

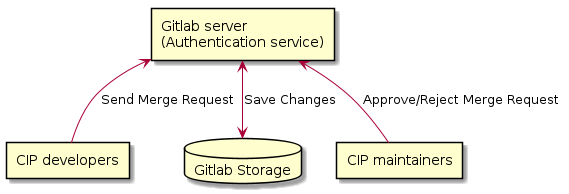

2.Diagram_B

$@startuml rectangle "Gitlab server\n(Authentication service)" as r1 rectangle "CIP developers" as r2 database "Gitlab Storage" as db1 rectangle "CIP maintainers" as r3 r2-up->r1 : Send Merge Request db1<-up->r1 : Save Changes r3-up->r1 : Approve/Reject Merge Request @enduml$

3.Diagram_C

$@startuml rectangle "Key Genreration" as r1 rectangle "Key Storage" as r2 rectangle "Key distribution & \n installation" as r3 rectangle "Key Use" as r4 rectangle "Key rotation" as r5 rectangle "key backup & recovery" as r6 rectangle "Key revocation & \n suspension" as r7 rectangle "Key destruction" as r8 r1-right->r2 r2-right->r3 r3-right->r4 r4-->r5 r5-left->r6 r6-left->r7 r7-left->r8 @enduml Private Key Management Life Cycle$

4.Diagram_D

@startuml
class Example {
+attribute: type
+method()
}
@enduml
